IC Sockets / Precision Connectors & Adapters > Spring-Loaded Contacts Series > 2.54mm pitch - SMT - 1, 2-row Strips. 3.00mm profile. Contact live 100K cycles >
2.54mm pitch - SMT - 1, 2-row Strips. 3.00mm profile. Contact live 100K cycles
2.54mm pitch - SMT - 1, 2-row Strips. 3.00mm profile. Contact live 100K cycles
E-Tec
PPS-xxx-H3xx-67 X

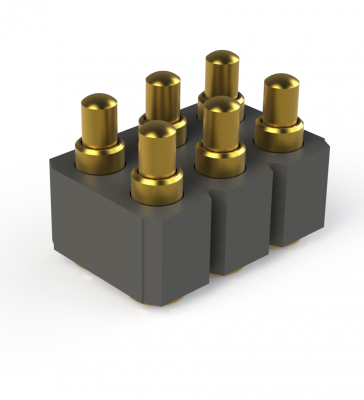

Spring-Loaded Contact Connectors, 2.54mm pitch, single and double row contacts strip, gold plated precision machined contacts. Sourface mount (SMT) soldering technology. Plastic insulator height 3.00mm.
Number of contacs availability:
Single row : 2 to 10 contacts
Double row : 4 to 20 contacts.
The contacts have 1.15mm to 1.40mm stroke with the option from 4.50mm to 5.50mm contact height. Location options.
Contact live 100K cycles
