RF and COAX Connectors
Crimp Jack

MCX E-Tec
RFJ–MCS–C1N502–58

These MCX miniature snap-on connectors with 50Ω impedance operate in a frequency range up to 6 GHz.
The MCX series is an ideal solution for GPS, wireless communications and testmeasurement applications.
See more ...

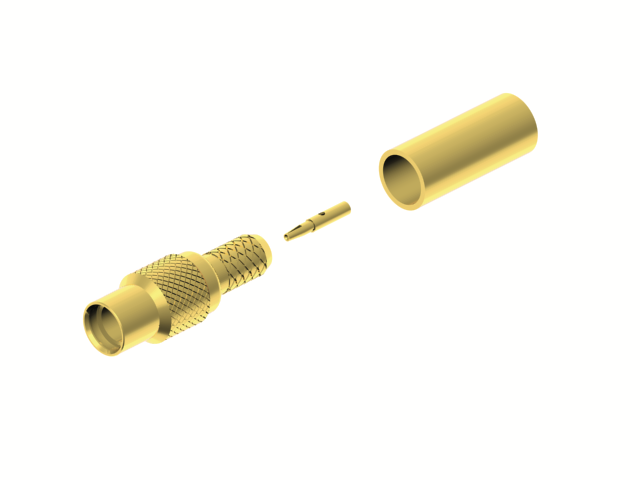

MMCX E-Tec
RFJ–MMS–C1N502–58

MMCX series with 50Ω impedance offer the smallest dimensions for high density applications.
The MMCX connectors work a frequency range up to 6 GHz and they can be offered in thru-hole and surface mount technology for flexible and semi-rigid coaxial cable interconnection systems.
See more ...

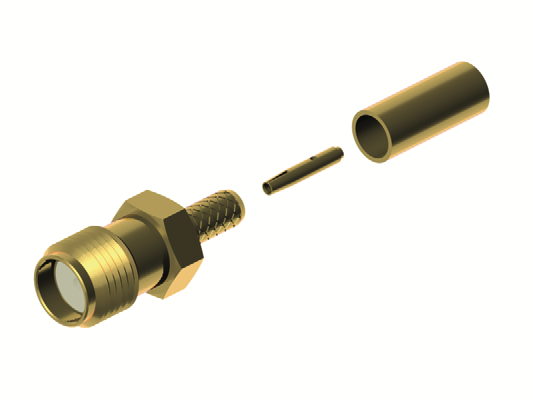

SMA E-Tec
RFJ–SAS–C1N502–58

SMA connectors with 50Ω impedance are high precision subminiature devices designed for microwave applications up to 18 GHz.
These connectors are produced with brass or high quality stainless steel, whichoffer excellent durability and mechanical strength.
See more ...

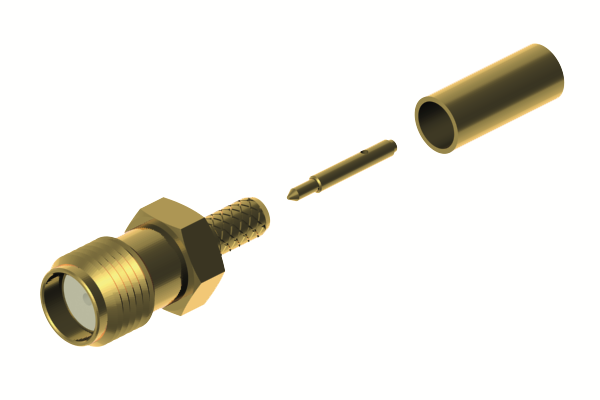

SMA Reverse E-Tec
RFJ–SRS–C1N502–58

SMA Reverse connectors with 50Ω impedance are designed for using in spread spectrumwireless applications which a non-standard interface is needed.
See more ...

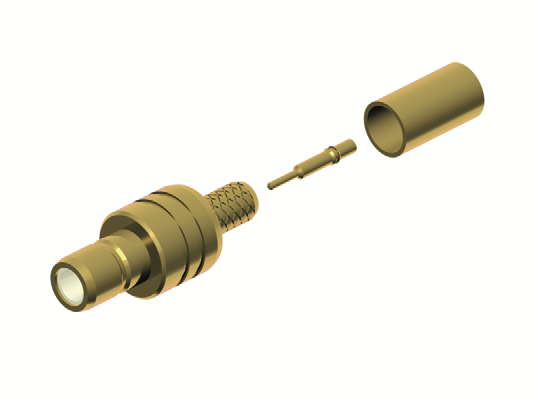

SMB E-Tec
RFJ–SBS–C1N502–58

SMB connectors with 50Ω impedance are subminiature devices designed for repeatable electrical performance up to 4 GHz.
These SMB connectors offer a simple open-close snap-on coupling feature and which have become very popular in telecommunications, test equipments and instrumentation
See more ...
