RF and COAX Connectors


RF and COAX Connectors > Straight THT Jack >

MCX E-Tec
RFJ–MCS–B1N592–58

These MCX miniature snap-on connectors with 50Ω impedance operate in a frequency range up to 6 GHz.
The MCX series is an ideal solution for GPS, wireless communications and testmeasurement applications.
See more ...

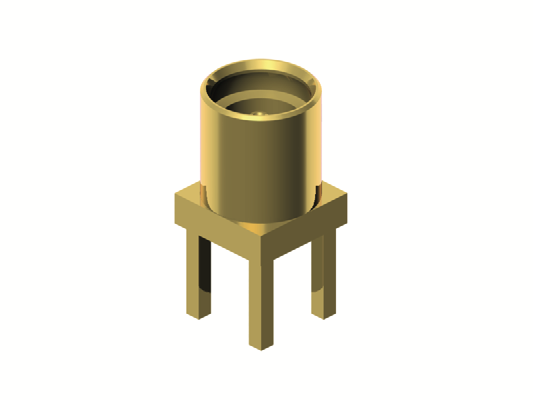

MMCX E-Tec
RFJ–MMS–B1N592–58

MMCX series with 50Ω impedance offer the smallest dimensions for high density applications.
The MMCX connectors work a frequency range up to 6 GHz and they can be offered in thru-hole and surface mount technology for flexible and semi-rigid coaxial cable interconnection systems.
See more ...

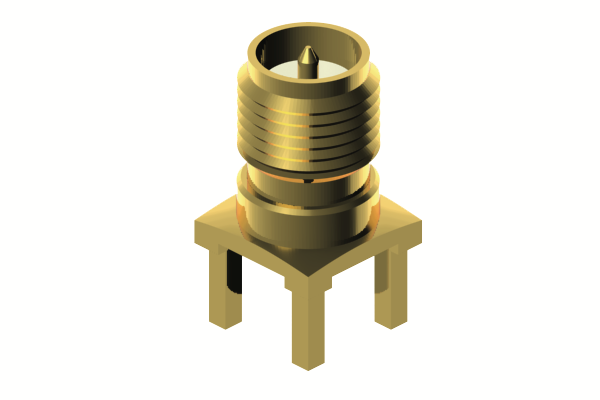

SMA Reverse E-Tec
RFJ–SRS–B1N592–58

SMA Reverse connectors with 50Ω impedance are designed for using in spread spectrumwireless applications which a non-standard interface is needed.
See more ...

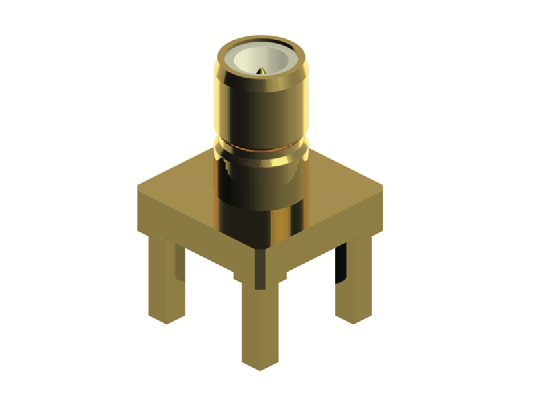

SMB E-Tec
RFJ–SBS–B1N592–58

SMB connectors with 50Ω impedance are subminiature devices designed for repeatable electrical performance up to 4 GHz.
These SMB connectors offer a simple open-close snap-on coupling feature and which have become very popular in telecommunications, test equipments and instrumentation
See more ...
