DIMM sockets are only available as long latch type ( Module locking extractors ) and THT soldering technology.
Insertion & extraction of the module can be made without any tools. Positive polarization prevents wrong insertion of the module. Contacts are designed with an anti-overstress feature for long contact life. Selective Gold/Tin plated. Gold only in contact area.

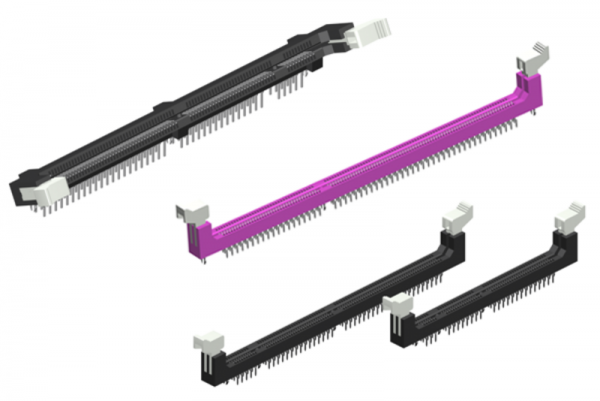

Available in vertical, horizontal 25° and 90° for 100- and 168-pin 3,3V and 5,0V modules, and 184-pin 2,5V modules. For DDR I, II and III modules 184-pin 2,5V & 240-pin 1,5V.
Please select:
DIMM Sockets
|
168-pin horizontal 90° socket type |
|
DM1-168-RCA9-95/1L DIMM Sockets - THT - 168-pin horizontal 90° for UD-RAM modules in 3,3V version. The socket with selective gold-plated contacts. Tin on soldering, and gold in contact area. Other versions on request. |
|
168-pin slanted 25° socket type |
|
DM1-168-SCA8-95/1L DIMM Sockets - THT - 168-pin slanted 25° for D-RAM, SD-RAM and UD-RAM modules in 3,3V version. The socket with selective gold-plated contacts. Tin on soldering, and gold in contact area. |

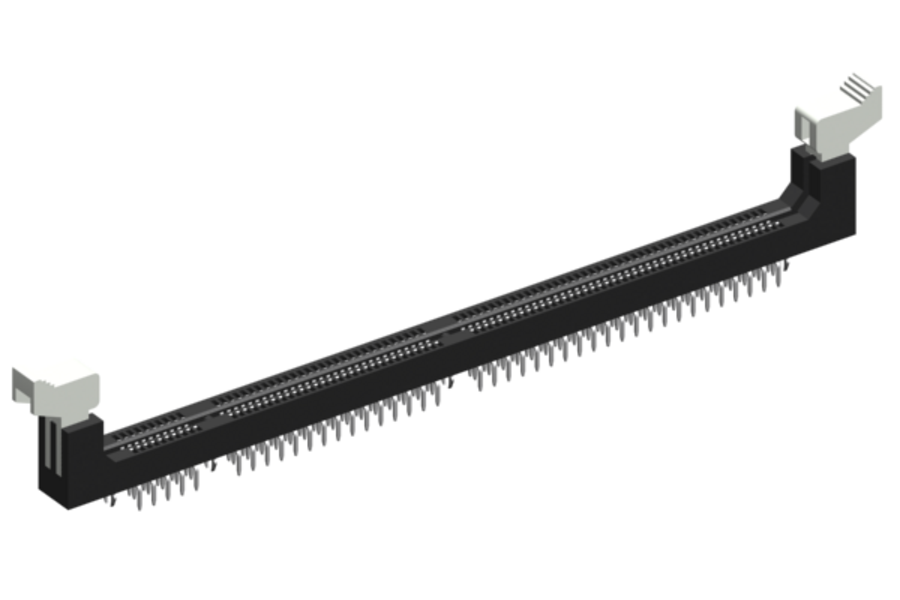

184-pin vertical DDR socket type |
|
|
DR1-184-VBZ9-95/1L DIMM Sockets - THT - 184-pin vertical DDR for DDR modules in 2.5V version. The socket with selective gold-plated contacts. Tin in soldering, and gold in contact area. Other versions on request. |
240-pin DDR-III |
|
|
DR1-240-VAZ9-95/0LX DIMM Sockets - THT - 240-pin DDR-III for DDR III modules in 1,5V version. The socket in "pink", "green" or "black" with selective gold-plated contacts. Tin in soldering, and gold in contact ar |
100- and 168-pin vertical socket types |
|
|
DM1-1xx-VXX9-95/L DIMM Sockets - THT - vertical, 100-pin for UD-RAM modules 3,3V. 168-pin for D-RAM, SD-RAM and UD-RAM modules 3,3V and 5,0V. The sockets have selective gold-plated contacts. Tin in soldering, and gold in contact area. |
