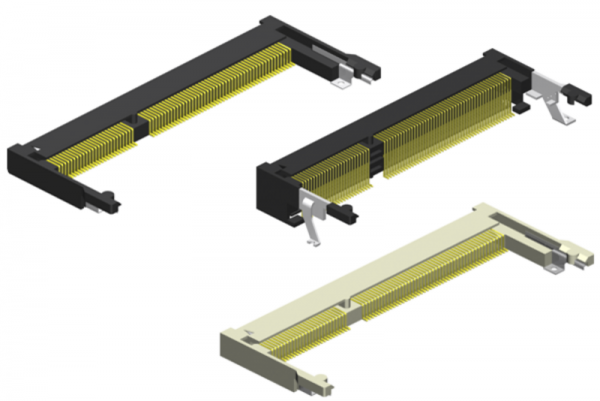

SO-DIMM sockets are made of hi-temp resistant LCP and SMT soldering technology.
Insertion & extraction of the module can be made without any tools. Positive polarization prevents wrong insertion of the module. Contacts are designed with an anti-overstress feature.
For DRAM 3.3V and 5.0V types 144-pin, 200-pin for 1.8V and 2.5V, as well as 204-pin for 1.5V DDR modules. A "piggyback" version is also available for DRAM modules.
Please select:
SO-DIMM Sockets
|
For D-RAM modules 144-pin |
|
DMD-144-RSA9-55 SO-DIMM sockets 144-pin available in different heights, also as "Piggyback". Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. |
|
For DDR modules 200-pin |
|
DMD-200-RXX9-55 SO-DIMM sockets 200-pin for SD-RAM types 1.8V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. Gold plated contacts. |
|
|
For DDR modules 204-pin 5.20mm height |
|
DMD-204-RSF9-55/TR SO-DIMM sockets 204-pin 5.20mm height for SD-RAM types 1.5V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. Gold plated contacts. |
|
|
For DDR modules 204-pin vertical |
|
DMD-204-VLF9-55 SO-DIMM sockets 204-pin for SD-RAM types 1.5V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. Gold plated contacts. |
|
|
For DDR modules 260-pin horizontal |
|
DMD-260-RLG9-55/TR SO-DIMM sockets 260-pin horizontal for SD-RAM types 1.2V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. Gold plated contacts. |
|
|
For DDR modules 260-pin vertical |
|
DMD-260-VLG9-5x/DT SO-DIMM sockets 260-pin vertical for SD-RAM types 1.2V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. |
|
|
For DDR modules 288-pin vertical |
|
DMD-288-VF49-9x/8L SO-DIMM sockets 288-pin vertical for SD-RAM types 1.2V. Metal clamps in the guide and holding arms prevent breakage during assembly and removal of the module. |
