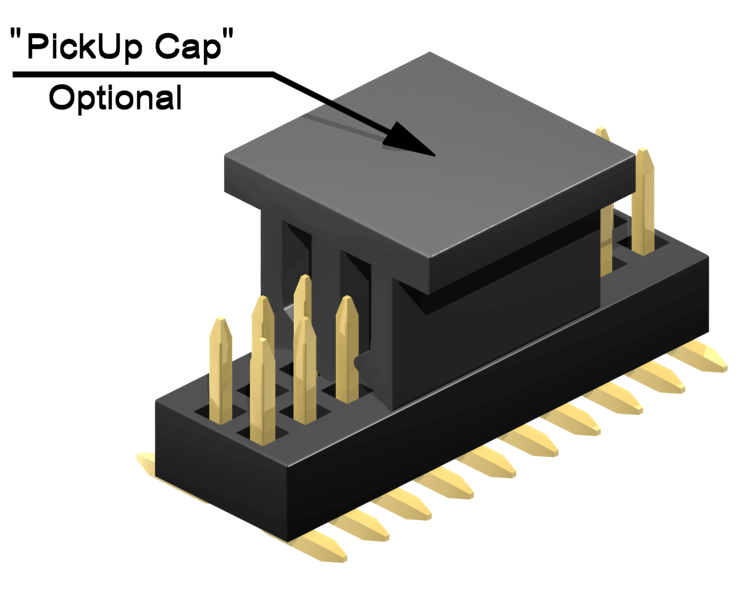

2.00mm pitch Pin Header - SMT - Straight Low profile Dual rows

PIN HEADER - SMT straight 2.00mm pitch, Low profile, double row with a variety of standard dimensions of the soldering and plug side. Location peg options. Special customer-specific dimensions are possible. Details and dimensions applied can be find on the "View technical datas"

View technical datas

Part Number

SS2 - xxx - Hx 064 / x - 55/2 X

Related documents

Technical Drawing
