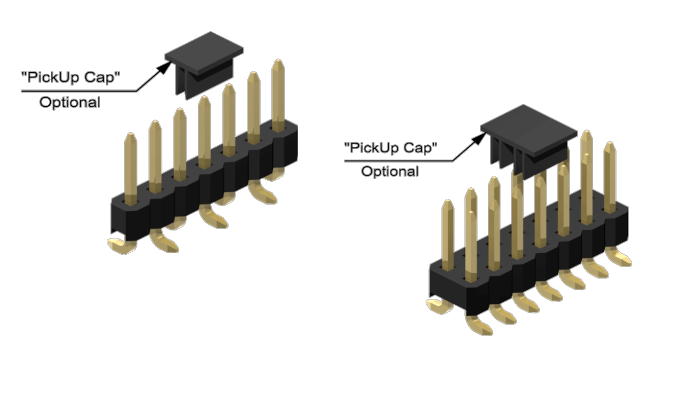

2.54mm pitch Pin Header - SMT - Straight Low profile Single and dual rows

PIN HEADER - SMT straight 2.54mm pitch, Low profile, single and double row with a variety of standard dimensions of the soldering and plug side. Location peg options. Special customer-specific dimensions are possible. Details and dimensions applied can be find on the "View technical datas"

View technical datas

Part Number

SS x - xxx - X 14x / xx - 55 X

Related documents

Technical Drawing
