3 - Hi-rel PLP Series PLCC Socket SMT JEDEC Standards

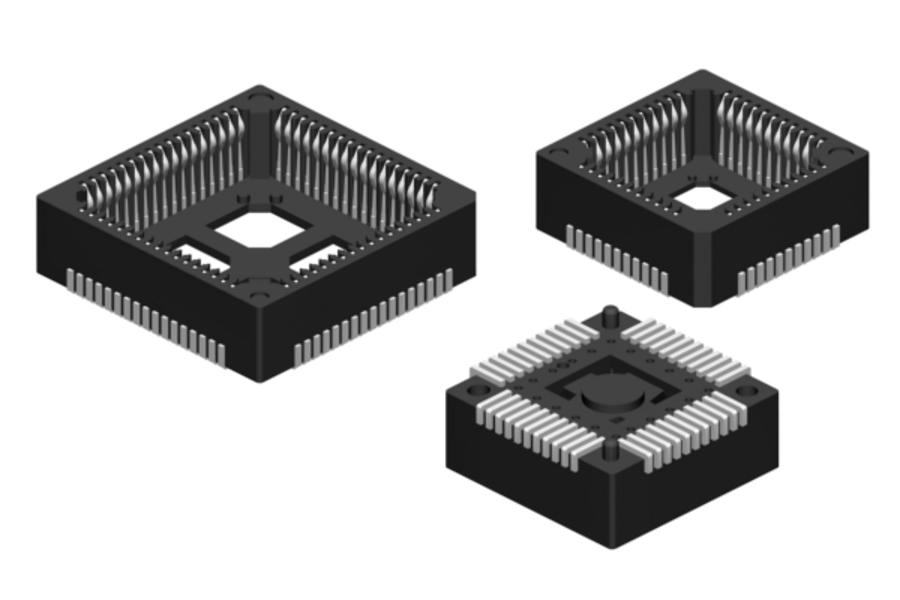

E-tec „hi-rel“ SMT PLCC sockets correspond to JEDEC Norms. Precision stamped contact design provides special „push-down effect“onto the leads of the chip. For very high shock and vibration applications a chip retention clip can be obtained on request. Inside polarisation corner prevents wrong insertion of the chips. Stand-off under the base prevents solder shorts. Chips can be easily removed with the Universal extraction tool PUL-200.

View technical datas

Part Number

PLP-xxx-H100-99

Keywords : PLCC socket,hi-rel PLCC socket,SMT PLCC socket,SMD PLCC socket
